Why Tube Bend Angle Accuracy Matters More Than Ever

Where Bend Angle Measurement Fits in the Quality Process

During Machine Setup

Accurate measurement helps confirm the first bend matches the programmed angle, reducing setup time and scrap.

During First-Article Inspection

Quality teams can document bend angle verification as part of inspection reports and PPAP / FAI processes.

During Production

Periodic checks ensure machines remain in tolerance and prevent drift across long production runs.

This simple step helps ensure repeatable results shift after shift.

Why Accurate Tube Bend Angle Measurement Matters

In modern tube fabrication, bend accuracy directly impacts scrap rates, rework, labor costs, and on-time delivery. Even a small bend angle deviation can cause assemblies to fail fit-up, delay downstream processes, and create costly production interruptions.

For quality engineers and manufacturing teams, bend angle verification is not just a setup task, it is a critical quality control step that protects production efficiency.

Manufacturers running CNC tube benders, rotary draw benders, or manual bending operations must confirm that the actual bend angle matches the programmed bend angle during:

• Machine setup
• First-article inspection
• In-process quality checks
• Production changeovers

Without accurate measurement, shops often rely on trial-and-error adjustments, which increase scrap and consume valuable machine time causing delays and directly impacting your bottom line.

Where Bend Angle Measurement Fits in the Quality Process

During Machine Setup

Accurate measurement confirms that the first bend matches the programmed angle, reducing setup time on CNC tube benders and sheet metal forming equipment.

During First-Article Inspection

Quality teams can document bend angle verification as part of FAI or PPAP inspection procedures.

Supporting Tube Bending and Sheet Metal Forming Accuracy

Accurate setup on tube bending machines and sheet metal press brakes depends on having the right measurement tools available.

Dedicated bend angle measuring devices allow operators to verify bend angles quickly and repeatably without interrupting production.

Designed for Industrial and Metrology Applications

Winton AM Series angle measuring devices are used in a wide range of manufacturing environments.

Applications include:

• Tube fabrication shops
• Sheet metal fabrication facilities
• RF and semi-rigid coax manufacturing
• Industrial quality inspection departments
• Metrology laboratories

Because the device measures any measurable angle, it can also be used to verify machine angles, assemblies, and precision components made from materials such as:

• Steel
• Aluminum
• Plastics
• Wood or any solid material

Choosing the Right Tool for Tube Bend Angle Measurement

Regardless of the bending process used to bend a tube, tube fabricators are interested in the quality of the bend angle produced. Bend angle quality often translates into a tolerance surrounding a target angle. Measuring a bend angle is old hat. However, a review of the various measuring techniques may shed a new light on an important subject.

Protractors – Making Use of the Basics

Traditional protractors come in a digital or vernier style. By far the vernier style has been around for decades and continues to be a low-cost option for measuring bent tubular angles worldwide; see below.

Low tech and most often accurate to about ± 0.5°, these devices do not require a whole lot of calibration. You will also find a vernier type of protractor around a brake. They are good for measuring a bent piece of sheet metal day in and day out. However, unlike sheet metal, a typical round bent tube can be a little more difficult to hold tangent to a protractor together while at the same time trying to hold the pair up to the light to make an accurate angular read.

Check Fixture – Quick and Dependable

For low and high-volume jobs, a simple check fixture usually does the trick. If it drops in the fixture, the overall profile along with the bend angles are good; see below.

Photo provided courtesy of Clark Fixture.

This is a fast and effortless way for “in process” inspection to take place. Another nice aspect of this approach is the low initial investment with respect to the number bent angles you can qualify in a matter of seconds.

The Hidden Cost of “Close Enough” Bend Angles

If you do not verify angles early in the process, nonconformities typically surface downstream in production.:

• Tube assemblies do not fit fixtures
• Welding and brazing stations experience delays
• Operators make repeated setup adjustments
• Material waste increases
• Delivery schedules slip

For high-mix and high-precision manufacturing, this can quickly become a major source of lost productivity.

Accurate bend angle measurement enables teams to identify deviations immediately, preventing scrap when processing large production batches.

A Better Approach: Use Dedicated Tube Bend Angle Measuring Devices

Instead of relying on generic measuring tools, manufacturers are moving toward dedicated tube bend angle measuring devices designed specifically for tubular parts.

These devices allow operators and quality engineers to quickly and repeatably verify bend angles directly on the shop floor or in inspection areas. You can purchase this digital benchtop measuring device as is or with a moveable stand to efficiently move it from station to station.

Key advantages include:

• Fast and repeatable angle verification
• Reduced reliance on trial-and-error setups
• Consistent results across operators and shifts
• Support for documented inspection procedures
• Improved first-article approval speed

This shift is especially important for teams implementing lean manufacturing and ISO quality systems.

Supporting CNC Tube Bender Accuracy

Accurate setup on CNC tube benders depends on proper measurement tools like tube bend angle measuring devices.

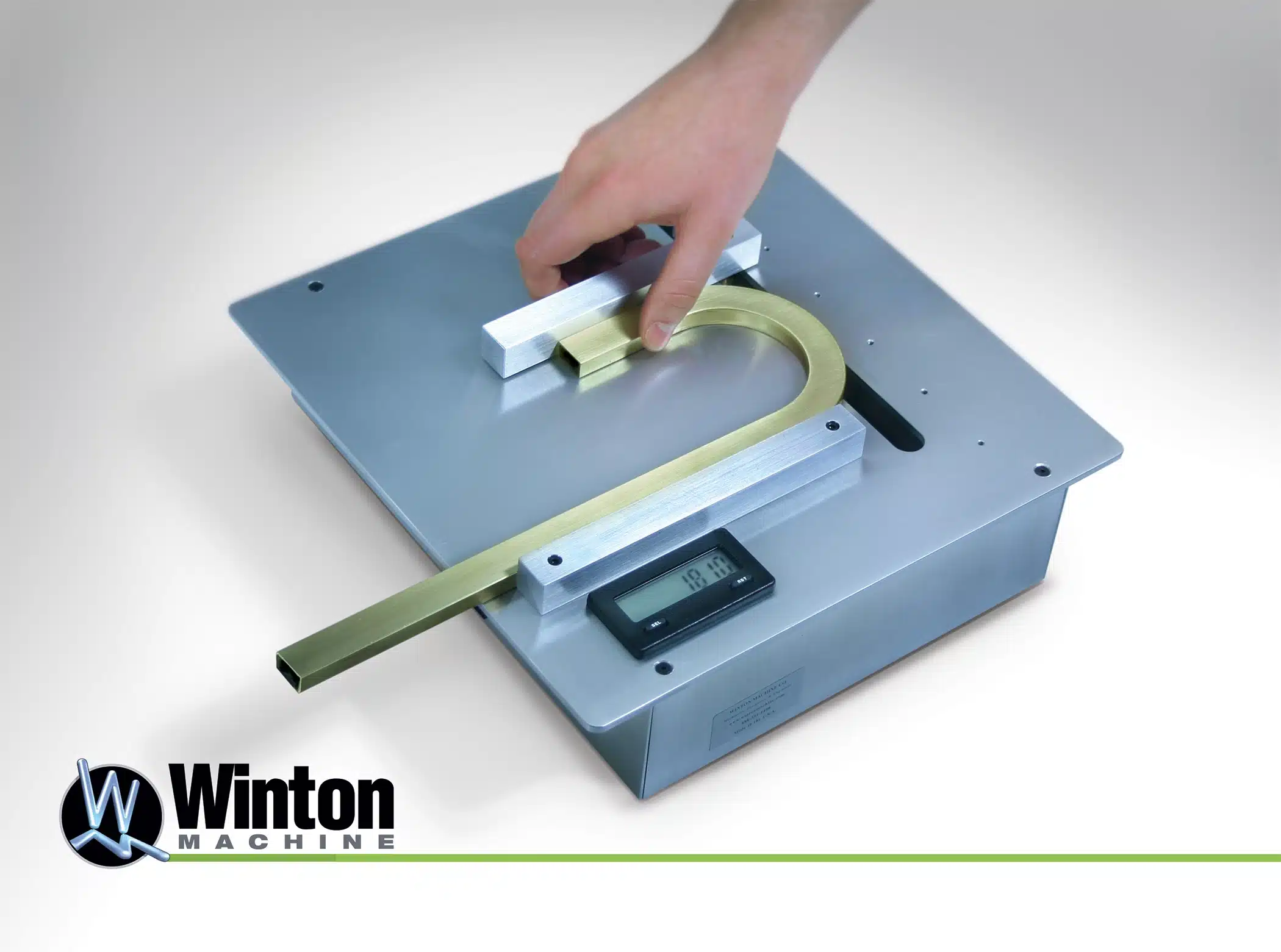

Tube Bend Angle Measuring Devices: AM40 Angle Measuring Machine for Tube Fabrication, AM75 Digital Bend Angle Measuring Machine, and AM100

The High End of the Measuring Scale

Coordinate measuring machines (CMM) started coming into play back in the 1980’s; see below.

Photo provided courtesy of Eaton Leonard.

These devices are excellent for evaluating bend angles as well as the entire tube profile. Most CMMs today use a non-contact probe. The probe measures the part at various locations, and a computer model of the actual part along with its comparison to the tolerance envelope.

A CMM generates comprehensive profile data, including detailed bend angle measurements. If you only need bend angle verification, a CMM may provide more functionality than required. However, it can measure multiple bend angles in a single setup and quickly present the results in a clear digital format.

Choosing the right device for inspection must consider budget, level of inspection data needed, and available time allowed for bend angle verification. It is not always a straightforward decision.

FAQ

How do you accurately measure tube bend angles?

Using dedicated tube bend angle measuring devices allows operators and quality engineers to verify the actual bend angle during setup, first-article inspection, and production. This helps confirm bend accuracy, reduce scrap, and ensure consistency across CNC and manual tube bending operations.

Why is bend angle verification important in tube fabrication?

Incorrect bend angles can cause fit-up issues, increase scrap, delay production, and require costly rework. Verifying bend angles early helps maintain production efficiency and on-time delivery.

Can bend angle measurement reduce scrap?

Yes. Verifying bend angle accuracy during setup and first-article inspection helps identify deviations before full production begins. Early detection prior to running large production batches prevents a large amount of scrap material and downtime. Consistent bend angle verification improves process stability by confirming that tooling, material variation, and machine parameters are performing as expected. This reduces cumulative dimensional drift across multi-bend parts and minimizes downstream fit-up issues during assembly. The result is improved yield, better on-time delivery, and lower overall production cost.

Who uses tube bend angle measuring devices?

Quality engineers, manufacturing engineers, CNC tube bender operators, and inspection teams all rely on bend angle verification tools.
