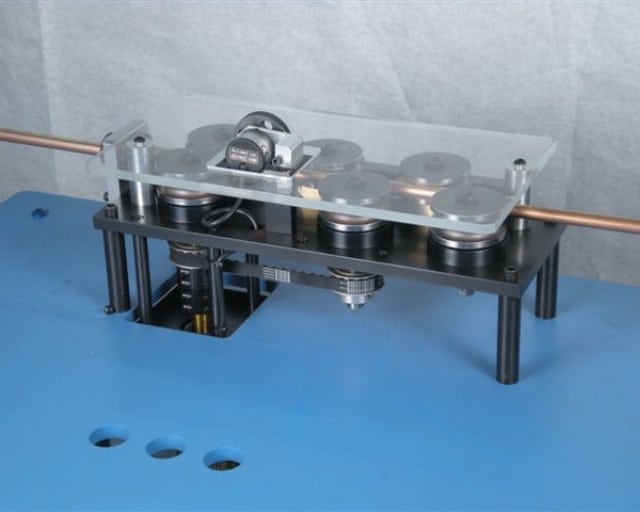

M23 & M35 Tube Straighteners

Model #: 21439

Free Standing Copper & Aluminum Tube Straightening Machine

The M Series is a free standing machine with a variable speed control, a forward and reverse switch, and an E stop switch for safe operation.

The tube straighteners can process tubing that is semi straight to start with or from a level wound spool.  A Baldor AC motor will pull a 250 pound level wound spool of tubing from an optional payoff.

Winton's M Series tube straighteners are free standing with variable speed control, forward & reverse, & an E stop switch for safe operation.

Product Video & Details

Customers using Internet Explorer may have difficulty viewing the online training videos.

We suggest using Chrome, Safari, Microsoft Edge, or another modern internet browser to view our videos. To find out more about the system requirements to view our training videos, and to see if your device meets them, click here.

Safety
Safety is a mission-critical part of the continuous improvement culture at Winton Machine Company. Our machines are designed with advanced safety features and are regularly inspected to ensure they meet the highest safety standards. We also provide comprehensive training and resources to ensure your operators are fully equipped to use our machines safely and effectively. As machine safety options evolve, Winton Machine evaluates new safety trends to integrate proven and well-vetted design upgrades in all our machines which are engineered, manufactured and serviced here in the United States.
More Information

All tube straighteners are designed and tested in house.  We use standard purchased components to build every machine.  We at Winton are proud of the quality of every tube straightener delivered.  Please, call us today and ask how the quality of the tube fabricating machines we build will translate into quality tubular parts on your shop floor.  The M Series power straighteners are designed to straighten copper or aluminum tubing.

Specs & Equipment
  • Capacity:  .875” OD copper tubing (M23) & 1.375″ OD copper tubing (M35)
  • No. of rolls: 6 rolls in (1) horizontal plane
  • Adjustments: Adjustable rolls for true alignment
  • Safety: All guards included (side guards not shown)
  • Maximum feed rate: 8″ per second
  • Tooling: (1) set of roll dies included
  • Power requirements: 220VAC, customer specified, single phase
  • Dimensions: 14″ wide x 23″ long x 38″ tall (free standing machine)
  • Option #1: Encoder for integration
  • Option #2: payoff for holding horizontal bulk spool
  • Option #3: digital readout including an encoder for measuring material processed
