Tube Fabrication Solutions for the Medical Device Industry
Winton Machine designs and manufactures precision tube fabrication equipment to meet the standards of the medical device and diagnostic equipment industry in the United States and throughout the world. From clean cuts to complex bends in thin-wall stainless steel and aluminum tubing, our machines are engineered for accuracy, repeatability, and cleanroom-conscious manufacturing, required for everything from surgical instruments to diagnostic assemblies and implantable components.
Materials Commonly Used in Medical Tube Fabrication
Medical tubing demands high performance, smooth finishes, and tight tolerances. Winton machines are built to process the most common small-diameter materials used in this industry:
Stainless Steel (304, 316L) – Biocompatible, corrosion-resistant, ideal for surgical and diagnostic devices
Aluminum – Lightweight, clean, and well-suited for structural or disposable components
These materials are often fabricated in thin wall, small-diameter configurations, where consistency and precision are essential for patient safety and device performance.
Precision Tube Bending for Tight Tolerances
- CNC rotary draw tube benders designed for diameters from .031 – 2.0”
- Mandrel type bending for tight radius bending applications to minimize tube distortion
- Consistent bend angles across production runs
- Ideal for forming complex geometries for surgical tools and diagnostic assemblies
End Forming Capabilities for Medical Assemblies
- Produces precise and clean end forms for joining, and fluid connections
- Supports flaring, beading, reducing, and other form types required in medical devices
PS20 Pre-swaging Machine for Swaging Ferrules on Medical Tubing
Precision Swaging for Medical Tube Assemblies – The Winton PS20 is ideal for swaging front ferrules onto stainless steel or aluminum tubing used in medical equipment, delivering repeatable results for assemblies using Swagelok® or Parker®-style compression fittings.
Clean, Controlled Cutting with Wet Abrasive Technology
- Wet abrasive cutting machines for clean, square cuts on small-diameter stainless and aluminum tubing
- Minimal heat-affected zones preserve material properties and surface integrity
- Our solutions are ideal for applications where post-processing is required, especially orbital welding
Compact Footprint for Cleanroom-Friendly Integration
- Winton machines are compact and optimized for tight production areas
- Ideal for lean manufacturing cells requiring flexibility and precision
High Repeatability and Manufacturing Efficiency
- Machines engineered for tight part-to-part and lot-to-lot consistency
- High Cpk for Repeatability – Ensures consistent, precise tube fabrication
- Tooling and controls designed for fast changeovers and complex and varied tube assemblies.
- Supports production of both disposable and reusable medical components
From Manual to Fully Automated – Winton Delivers Scalable Tube Fabrication Solutions
Winton Machine offers a complete range of tube fabrication machinery, from hands-on manual systems to fully automated, lights-out manufacturing cells—designed to grow with your production needs.
Ready to Advance Your Medical Tube Fabrication?
Contact Winton Machine to learn how our CNC tube benders, end formers, and wet abrasive cutting machines can help you meet medical industry quality standards and production demands. Our tube fabrication machines are all engineered, manufactured, and supported in the USA.
Rotary Draw Benders 5mm-20mm
High Speed 20mm CNC Tube Bender e-Series
CNC tube bender used to bend up to 2" OD tubing. Winton's RD50 CNC tube bender is designed to make consecutive CW and/or CCW bends in a single work piece.
Model #: 21376-505
20mm CNC Tube Bender e-Series
Winton Machine’s RD20 CNC tube bender is a PLC controlled 3 axis CNC tube & pipe bender able to make mandrel bends.
Model #: 21376
15mm CNC Tube Bender - CNC Tube Bending - e-Series
The Winton Machine USA All Electric Rotary Draw CNC tube bender for small diameter tube bending is perfect for producing tight radius bends.
Model #: 21479-505
RD5 CNC Semi-Rigid Coax Bending Machine
The Winton Machine USA RD5 is a 3 axis CNC bender that bends semi-rigid coax cable using a rotary wipe process for excellent signal transmission.
Model #: 214399-504
RD10 CNC Tube Bender
10mm CNC tube bender used to bend small diameter tubing, including brake lines, refrigeration components, and fuel lines.
Model #: 21406
Rotary Compression Benders
Model AB6 Rotary Compression Tube Bending Machine
This benchtop pneumatically powered tube bender is ideal for bending small diameter single bend parts.
Model #: 21420-505
CTL25A Wet Abrasive

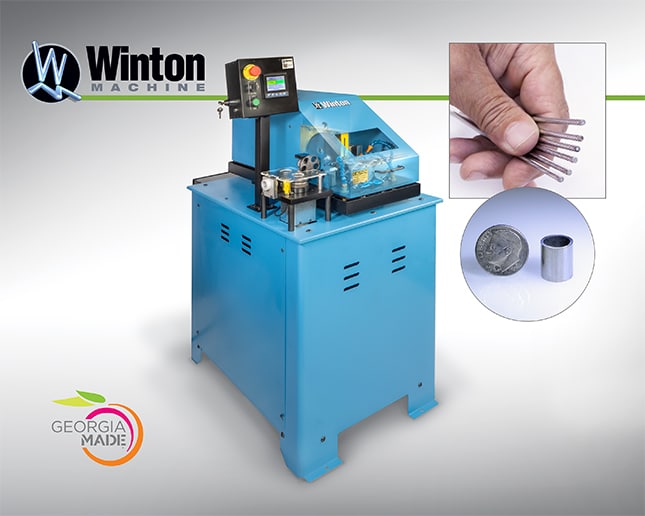

CTL-25A CNC Wet Abrasive Tube Cut-Off Machine
Winton Machine USA's CTL-25A CNC Wet Abrasive Tube Cut-Off Machine with Flood Coolant is a CNC wet abrasive machine designed to cut hard metals.
Model #: 21440-505
PS20 Pre-swaging machine
Swaging Machine to Preset Ferrules Onto Tubing | Model PS20
Automatic Pre-Swage tool to Compress Ferrules onto Teflon®, Copper or Stainless Steel tubing.
Model #: 21458-504
End Formers
Model TH25 Triple Hit End Former
The Winton USA TH25 Triple Hit End Former is a PLC controlled programmable tube end forming machine producing single, double, & triple hit end forms
Model #: 21464-505
DH50 Double Hit Ram End Forming Machine
The DH50 Double Hit End Former is a PLC controlled programmable tube end forming machine producing double hit end forms.
Model #: 21447
Model DH25 Double Hit Ram Tube End Former
The DH25 Double Hit End Former is a PLC controlled programmable tube end forming machine producing double hit end forms.
Model #: 21306
SH25 Single Hit Tube End Former
The Winton USA SH25 Single Hit Ram End Former is a PLC controlled programmable tube end forming machine producing single hit end forms.
Model #: 21404
Model DH25H Tube End Forming Machine
Winton's DH25H Double Hit End Former is a side & top loading PLC controlled programmable tube end forming machine producing double hit end forms
Model #: 21306-503
